B-456 | Two Story Small Building | Two independent Houses| Each House 2 Bedrooms + 2 Bathroom + 2 Balcony, Drawing Ready for Download

















B-456 | Two Story Small Building | Two independent Houses| Each House 2 Bedrooms + 2 Bathroom + 2 Balcony, Drawing Ready for Download

* House Description:

  • Each Floor has independent House Plan: Foyer, open Living Dining Visitors Hall, 2 Bedroom 2 Bathroom, Kitchen, Bar, Store Room, 2 Balcony.
  • Floor Size: 14.00x15.0 Meter
  • Each Floor Built-up Area: 165 M2
  • Total Built-up Area: 165 x 2 = 330 M2

--------------------

* Drawings Description:

The Set of Designs and Drawings Drawn to SCALE in Accurate Dimensions and Measurements in Both Auto Cad DWG file and PDF file will be including the Following:

  1. 1- Floor Plans: (2 Nos.) Ground, and First Floor, Shows Horizontal cutaway view for rooms, with the internal and external dimensions and the construction Grid.

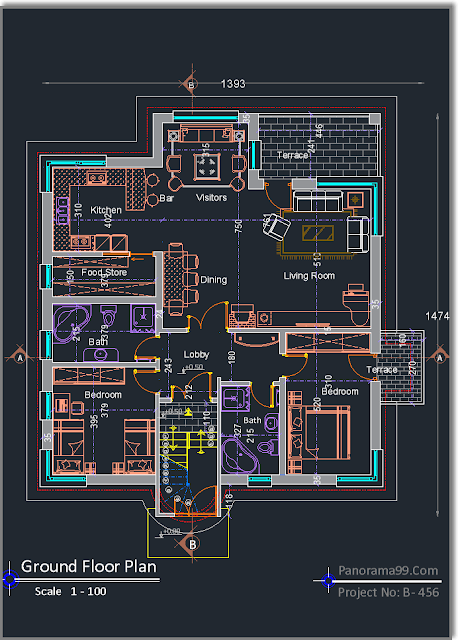

  2. 2- Furniture's Plan: (2 Nos.) Ground, and First Floor, Shows the Furniture's location and room sizes.

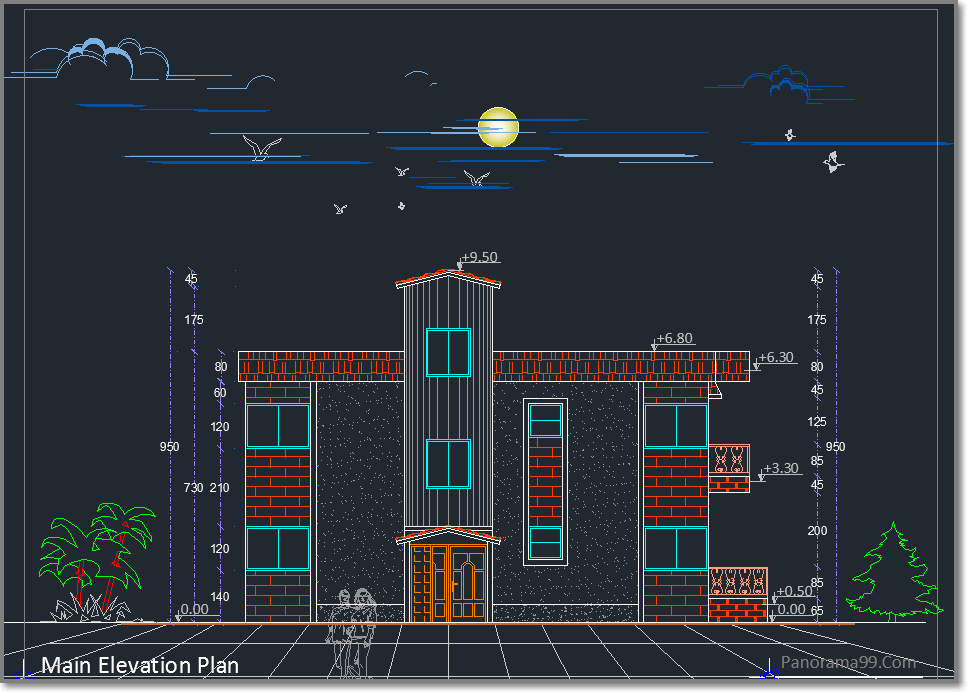

  3. 3- Elevations Plan: (2 Nos.) Front and Right Elevation, Shows the exterior views of the house.
  4. 4- Sections Plan: (2 No.) Sections A-A and B-B Shows a Vertical cutaway view with dimensions.

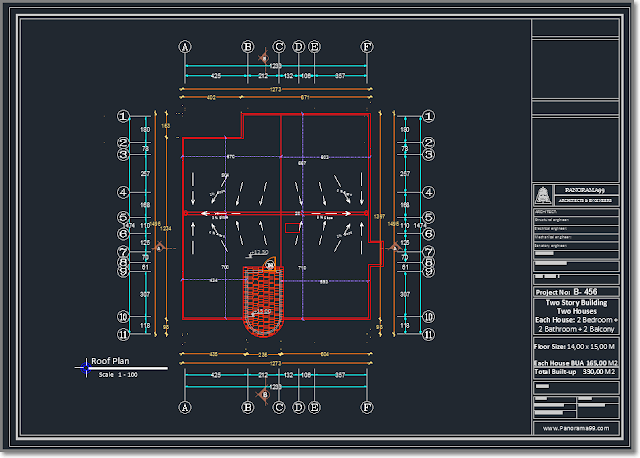

  5. 5- Roof Plan: (1 No.) Shows air view of the roof with valleys, hips, and ridges, slopes.
  6. 6- Schedule: of Doors and Windows sizes.
  7. 7- Copyright Release: to have the Authority to use the Full Set of plans for your Personal use.

--------------------

* For Sale: The Building Plans Drawn in Auto Cad DWG & PDF files Ready for Instant Download, if you like to Buy them Click the Link:

https://www.etsy.com/uk/PanoramaHousePlans/listing/881941940
