V-375| 33x30 two story house plans 1700 Sq Ft| cottage duplex home, 3 Bedroom tiny house country farmhouse
* General Notes:
- 1- The Dimensions and Measurements available in Both Unites (Feet) and (Meters).
- 2- You will get TWO SETS of Drawings in PDF Files in A3 Paper Size first in (Feet) and Second in (Meters).
- 3- The Drawings Drawn to SCALE by using Computer and Ready for Instant download.
- 4- This House plans can be customized, Please Tell us about your desired changes.
- 5- To View The House Plans in The Metric Dimensions visit our site: www.Panorama99.com
--------------------
* House Description:
- Luxury Villa with Flat Roof, Simple Design Simple 3D Perspective.
- Ground Floor: Lobby, Huge Living Dining Visitors Hall, Kitchen,
Toilet, Stair, Terrace.
- First Floor: 3 Bedroom, 1,5 Bathroom, Small Balcony.
- Floor Size: 10.00 x 9 Meter, (32.8x 29.50 Feet)
- Total Built-up Area: 157.5 M2 (1695 sq. ft)
- GF 82 + FF 75.5 M2 (GF 883+ FF 812 Feet)
--------------------
* Drawings Description:
The Set of Designs and Drawings in PDF file in A3 Paper
Size and its including the Following:
1- Floor plans: (2 No.) Ground
Floor and First Floor Shows Horizontal cutaway view for rooms, with the
internal and external dimensions and the construction Grid
2- Furniture's Layout: (2 Nos.) Ground
Floor and First Floor Shows the Furniture's location and room sizes.

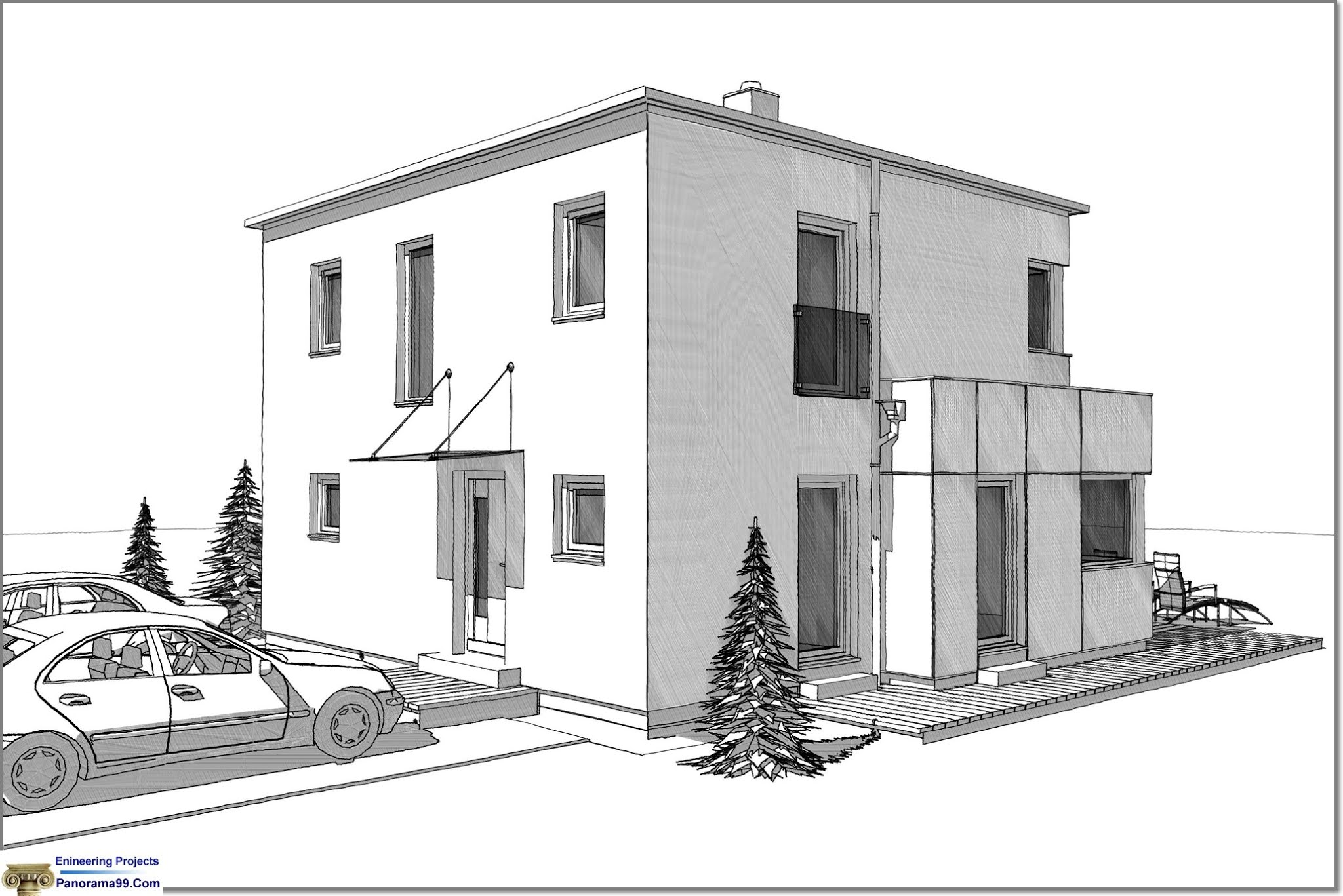

3- 3D Rendering Sketch: (4 Nos.) Monochrome Shows the External View of the
house from the Four Corner Sides.
4- Elevations Plan: (2 Nos.) Front and Right Elevation, Shows the exterior
views of the house,
5- Sections Plan: (2 No.) Sections A-A and BB- Shows a Vertical cutaway
view with dimensions.
6- Roof Deck Plan: Shows air view of the roof, ridges, slopes.
7- Foundation Plan: Shows footing, beams and the construction Grid and dimensions.
8- Copyright Release: to have the Authority to use the Full Set of plans for
your Personal Use.
--------------------
