V-380| 44x58 Two story house plan 4200 Sq Ft| duplex modern houseplans, custom 4 bedroom with 2 car garage, cabin cottage














V-380| 44x58 Two story house plan 4200 Sq Ft| duplex modern houseplans, custom 4 bedroom with 2 car garage, cabin cottage

* General Notes:

1- The Dimensions and Measurements available in Both Unites (Feet) and (Meters).

2- You will get TWO SETS of Drawings in PDF Files in A3 Paper Size first in (Feet) and Second in (Meters).

3- The Drawings Drawn to SCALE by using Computer and Ready for Instant download.

4- This House plans can be customized, Please Tell us about your desired changes.

5- To View The House Plans in The Metric Dimensions visit our site: www.Panorama99.com

--------------------

* House Description:

  • Ground Floor: Porch, Greet Hall, Kitchen, Balcony, Bedroom, Bathroom, Stair and 2 Car Garage.
  • First Floor: 3 Bedroom, 2 Bathroom, Family Setting, Balcony.
  •
  • Floor Size: 13.40 x17.65 Meter = (44.00 x 57.90 Feet)
  • Total Built-up Area: 394,00 M2 (4240 sq. ft)
  • (GF 208.00 + FF 186.00) M2
  • (GF 2238 + FF 2002) sq. ft

--------------------

* Drawings Description:

The Set of Designs and Drawings in PDF file in A3 Paper Size and its including the Following:

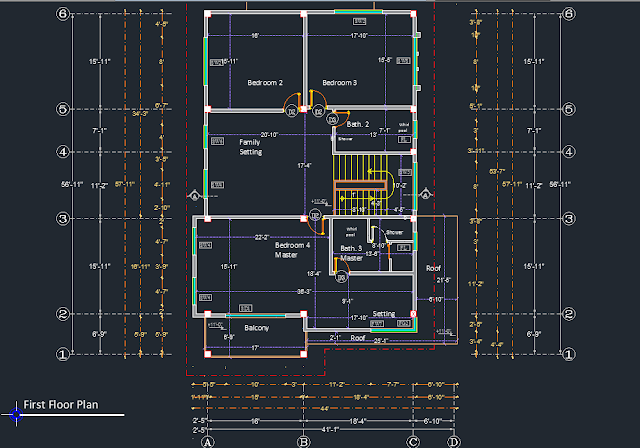

1- Floor plans: (2 Nos.) Ground Floor and First Floor plans, shows horizontal cutaway for all rooms, walls, windows, doors and the Furniture's with the Dimensions.

2- Furniture's Plan: (2 Nos.) Ground Floor and First Floor plans, Shows the Furniture's location and room sizes.

3- Elevations Plan: (2 Nos.) Front, Rear, Left and Right Elevation Shows the External views .

4- Sections Plan: (1 No.) A-A Shows a Vertical cutaway view with dimensions.

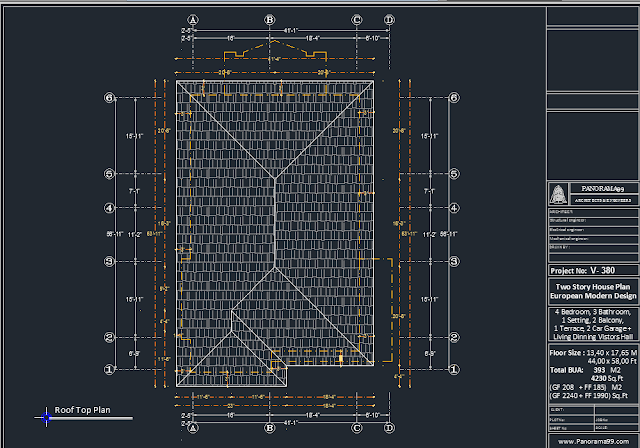

5- Roof Deck Location: (1 No.) Shows air view of the roof with valleys, hips, and ridges, slopes.

6- Roof Deck Plan: (1 No.) Shows air view of the roof with valleys, hips, and ridges, slopes.

7- Schedule: of Doors and Windows.

8- Typical Details:

9- Copyright Release: to have the Authority to use the Full Set of plans for your Personal use.

--------------------

* For Sale: The House plans are Ready in PDF file for Instant download, if you like to Buy them Click the Link:

https://www.etsy.com/uk/PanoramaHousePlans/listing/910381120/
