V-513 | 40x45 one story house plan 1700 sq ft | 2 Bedroom house plans | bungalow floor plans, small simple design | house plans for sale














V-513 | 40x45 one story house plan 1700 sq ft | 2 Bedroom house plans | bungalow floor plans, small simple design | house plans for sale



* General Notes:

  • 1- The Dimensions and Measurements available in Both Unites (Feet) and (Meters).
  • 2- You will get TWO SETS of Drawings in PDF Files in A3 Paper Size first in (Feet) and Second in (Meters).
  • 3- The Drawings Drawn to SCALE by using Computer and Ready for Instant download.
  • 4- This House plans can be customized, Please Tell us about your desired changes.
  • 5- To View The House Plans in The Metric Dimensions visit our site: www.Panorama99.com

--------------------

* House Description:

  1. Main Lobby, open Living Dining Visitors Hall, 2 Bedroom 2 Bathroom, Kitchen, Bar, Store Room, Terrace.
  2. The House plans is simple and beautiful in same time has a simple 3D Perspective
  3. Floor Size: 12.35x13.55 Meter, (40.50, 44.60) Feet
  4. Total Built-up Area: 160.70 sq.mt, (1730 sq. ft)

--------------------

* Drawings Description:

The Set of Designs and Drawings in PDF file in A3 Paper Size and its including the Following:

1- Ground Floor plans: Shows Horizontal cutaway view for rooms, walls, windows, doors, and the construction Grid.

2- Furniture's Plan: Shows the Furniture's location and room sizes.

3- 3D External Perspective: (1No.) Colored Shows the house from External High Corner.

4- 3D Rendering Sketch: (4 Nos.) Monochrome Shows the External View of the house from the Four Corner Sides.

5- Elevations Plan: (4 Nos.) Front, Right, Left and Rear Elevation, Shows the exterior views of the house,

6- Sections Plan: (2 No.) Sections A-A and B-B Shows a Vertical cutaway view.

7- Roof Deck Location: (1 No.) Shows air view of the roof with valleys, hips, and ridges, slopes.

8- Roof Deck Plan: (1 No.) Shows air view of the roof with valleys, hips, and ridges, slopes of roof surfaces.

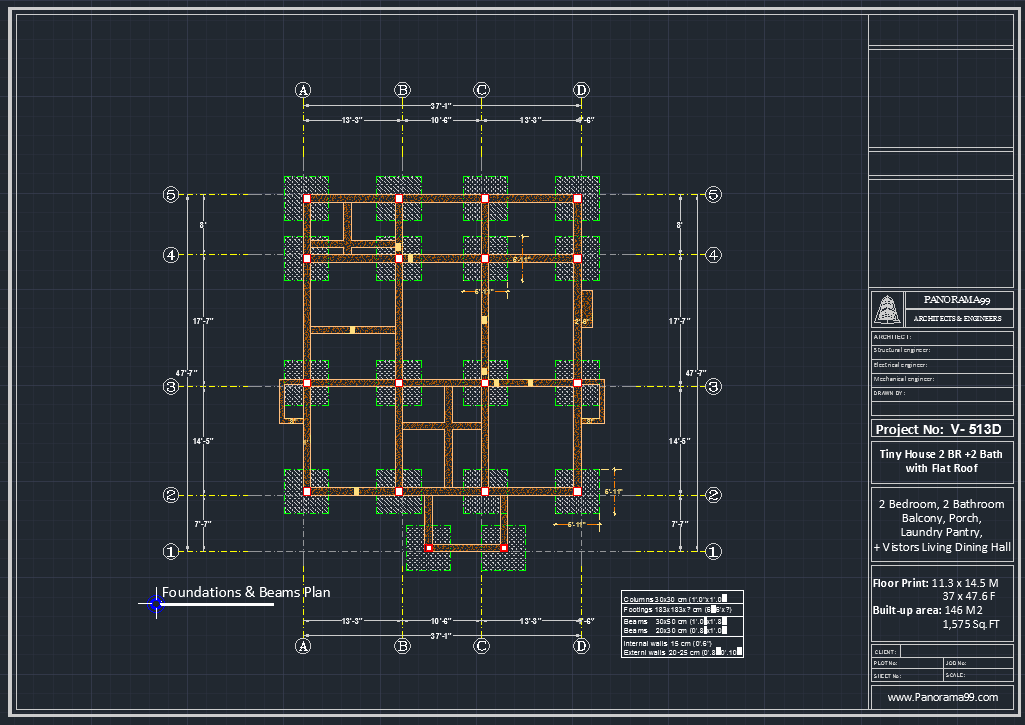

9- Footing Plan: (1 No.) Shows footing, beams and the construction Grid.

10- Typical Details:

11- Copyright Release: to have the Authority to use the Full Set of plans for your Personal Use.

--------------------

* For Sale: The House plans are Ready in PDF file for Instant download, if you like to Buy them Click the Link:

https://www.etsy.com/uk/PanoramaHousePlans/listing/855607193
